Our Polyurethane Foam Spray Valve is designed for professional construction applications, providing smooth and even foam distribution for building and construction projects. The durable tinplate construction ensures long-lasting performance in demanding environments.

Key Features

Eco-friendly design for sustainable construction practices
Durable tinplate construction withstands heavy use

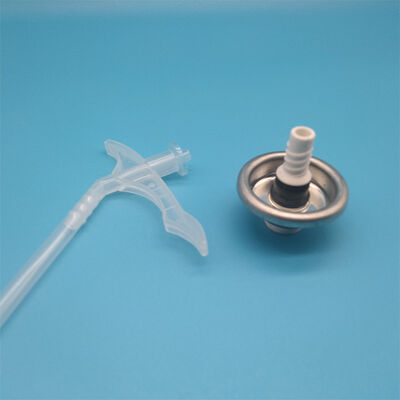

Flexible extension tube adapts to various application angles
Precision spraying mechanism minimizes material waste
Chemical-resistant materials ensure long service life

Technical Specifications

Attribute	Value
Product Name	PU foam spray valve
Material	Tinplate
Type	Long Stem PU Valve
Application	Building and Construction

Detailed Parameters

Component	Material	Options
Mounting cup	Tinplate	With or without dimples Plain or lacquer (clear or gold)
Outer Gasket	Buna
Inner Gasket	Buna, Neoprene, Butyl
Stem	Nylon	Orifice options: 1x0.46mm, 1x0.51mm, 2x0.51mm, 2x0.61mm, 4x0.61mm
Spring	Stainless steel
Housing	Nylon	Orifice: Φ4.3mm (Spray Area 14.52mm²) VPH Spray Area: 6.7mm² Steel Ball: Φ3.5mm

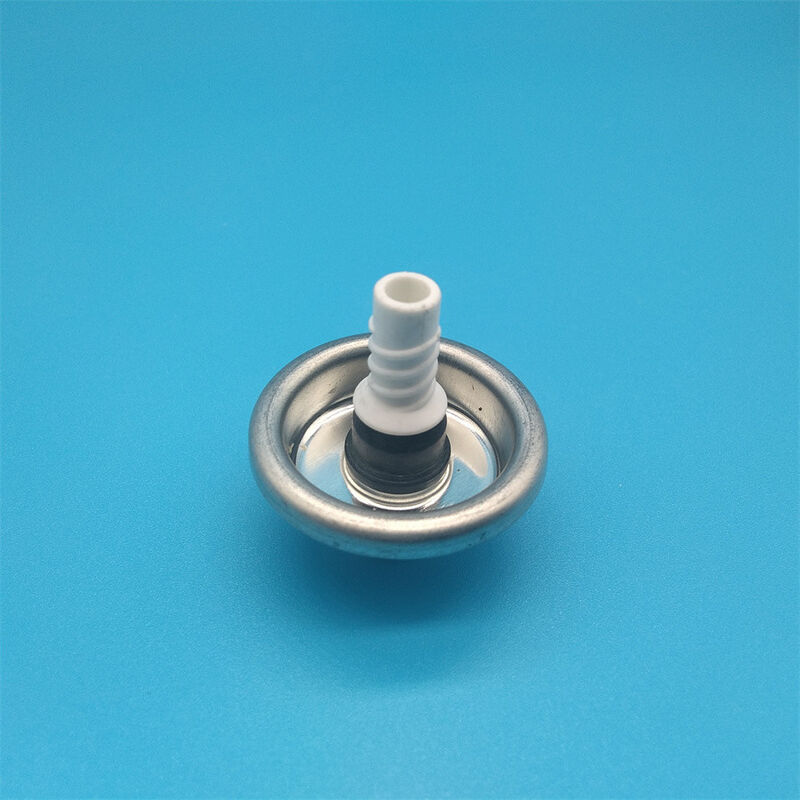

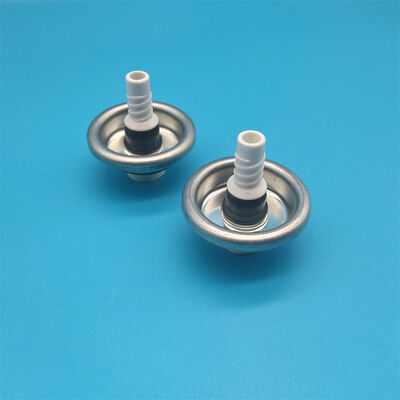

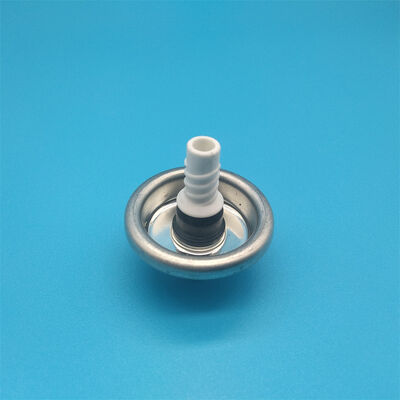

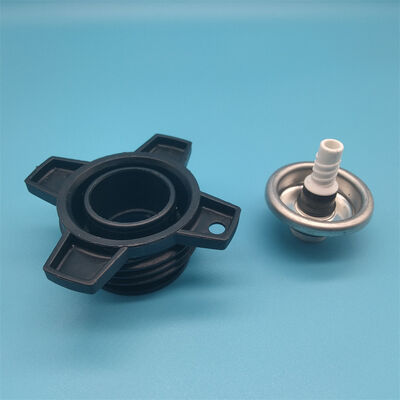

Product Images

Frequently Asked Questions

Can the spray valve be adjusted for different foam application requirements?

While it primarily controls spraying quantity and pattern, the valve can be configured with different orifice sizes to accommodate various application needs in construction projects.

Is the valve easy to maintain after construction use?

Yes, it can be cleaned using appropriate cleaning agents for polyurethane foam residues to maintain optimal performance.

How does the valve contribute to construction quality?

By ensuring precise and even foam application, it improves insulation effectiveness and structural integrity in building applications.

Can the spray valve be used for specialized construction applications?

Certainly, its flexible design makes it suitable for both standard construction projects and specialized applications requiring specific foam application techniques.

What's the advantage of its chemical-resistant feature?

It prevents damage to the valve from construction chemicals and polyurethane foam components, ensuring reliable performance throughout extended project timelines.
